Wood fibre board Roof dry density 140kg/m³

Home
Catalogue
Wood fibre board FiberTherm Roof dry

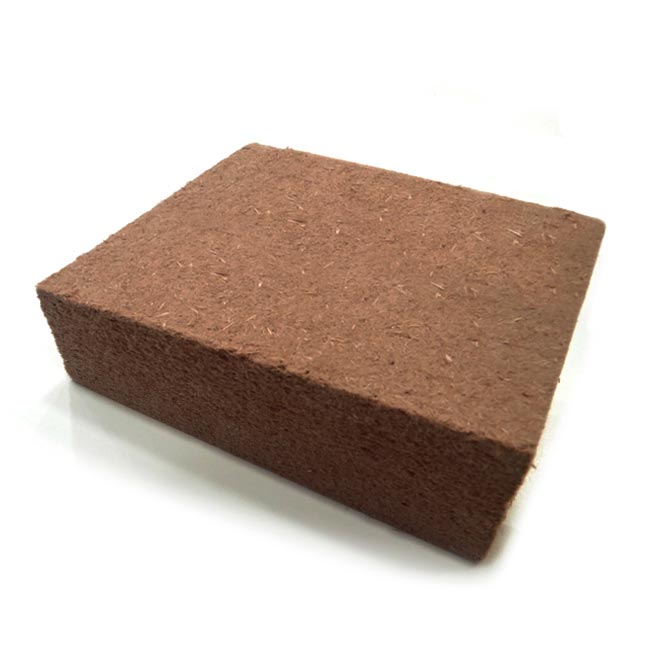

Wood fibre board FiberTherm Roof dry with density of 140kg/m³

Wood fibre boards with a density of 140 Kg/m³.

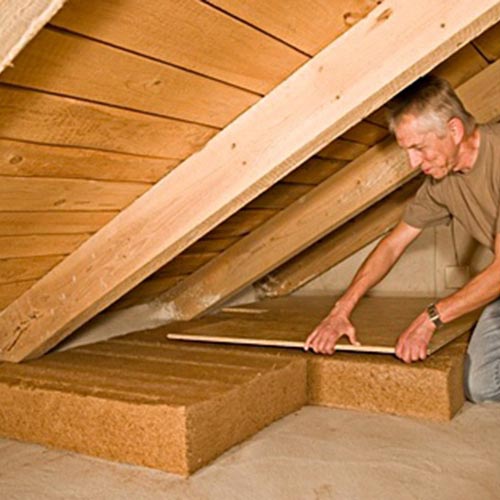

Fibertherm Roof dry 140 is a wood fibre board for thermal insulation for ceilings and flat or pitched roofs. Ideal for roof insulation in wooden buildings, but also in renovations and new traditional buildings.

from 4,93 €/m²

Price list Data sheet Specification

Description
Characteristics and sizes

The wood fibre board FiberTherm Roof dry 140 is a thermal insulator for extrados of floors and pitched roofs or flat roofs.

The wood fibre boards FiberTherm Roof dry 140 are ideal to insulate flat roofs. They have a density equal to 140kg/m³ and provide an high security due to their water repellent properties.

The material is also recyclable, it is certified and made exclusively with wood from controlled forests in compliance with the FSC guidelines (Forest Stewardship Declaration).

The insulating wood fibre boards FiberTherm Roof dry 140 has the following characteristics:

• ideal for the insulation of flat roofs;
• very good thermal insulation in winter and summer;
• high compressive strength;
• high safety for water repellent properties;
• recyclable, ecologic, environment-friendly;
• building material tested and authorized according to current European standards.

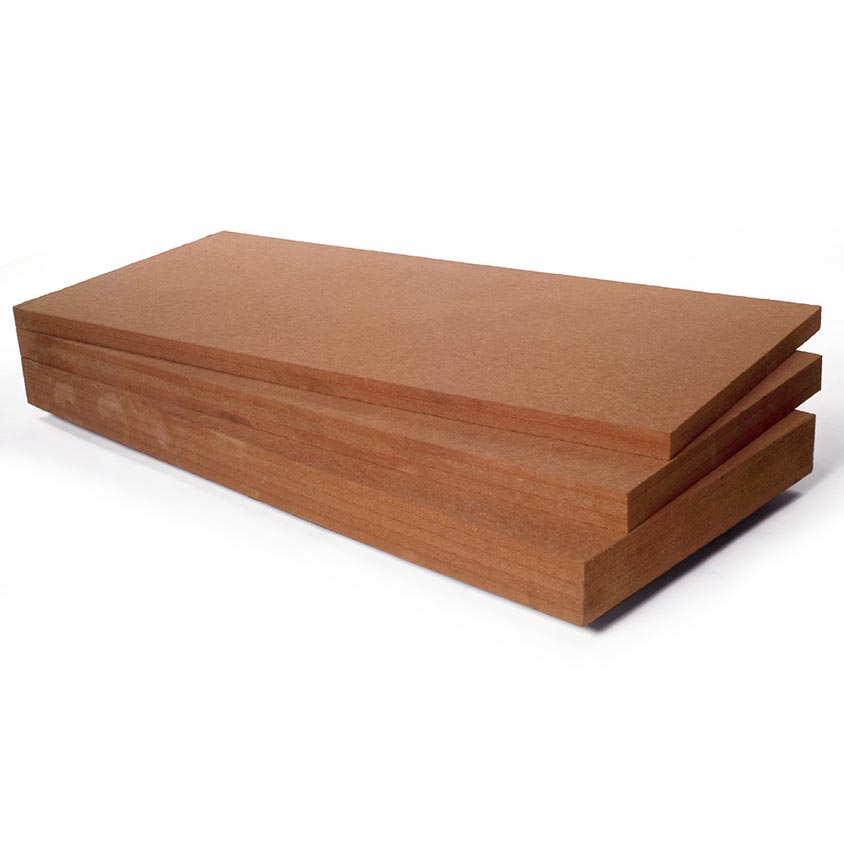

Available sizes

fiber wood panels with sharp edges

Thickness	Size mm	kg/m²	Pan./pallet	m²/pallet	kg/pallet
60 mm	800 x 800	8,40	38	24,3	approx.237
80 mm	800 x 800	11,20	28	17,9	approx.228
100 mm	800 x 800	14,00	22	14,1	approx.216
120 mm	800 x 800	16,80	18	11,5	approx.209
140 mm	800 x 800	19,60	16	10,2	approx.214
160 mm	800 x 800	22,40	14	9,0	approx.213
180 mm	800 x 800	25,20	12	7,7	approx.204
200 mm	800 x 800	28,00	12	7,7	approx.225

Technical characteristics

Characteristics	Values
Density kg/m³	140
Fire reaction according to EN 13501-1	E
Coefficient of thermal conductivity λD W/(m∗K)	0,040
Specific heat J/(kg∗K)	2.100
Resistance to vapor diffusion μ	5
sd value (m)	0,18(60)/0,24(80)/0,30(100)/ 0,36(120)/ 0,42(140)/0,48(160)/ 0,54(180)/ 0,60(200)
Thermal resistance RD (m²·K)/W	1,50(60)/2,00(80)/2,50(100) /3,00(120)/ 3,50(140)/4,00(160)/ 4,50(180)/ 5,00(200)
Compression stress for 10% of distorsion (N/mm²)	0,1
Compression resistance (kPa)	100
Tensile resistance (kPa)	≥10
Resistance to airflow [(kPa·s)m²]	≥100
Panels identification	WF-EN 13171-T5 –DS(70/-)2–CS(10\Y)100- TR10–WS1,0–MU3
Waste code (EAK)	030105/170201
