Wood fibre board Universal density 270kg/m³

Wood fibre board FiberTherm Universal density 270kg/m³

Wood fibre boards with density 270 Kg/m³.

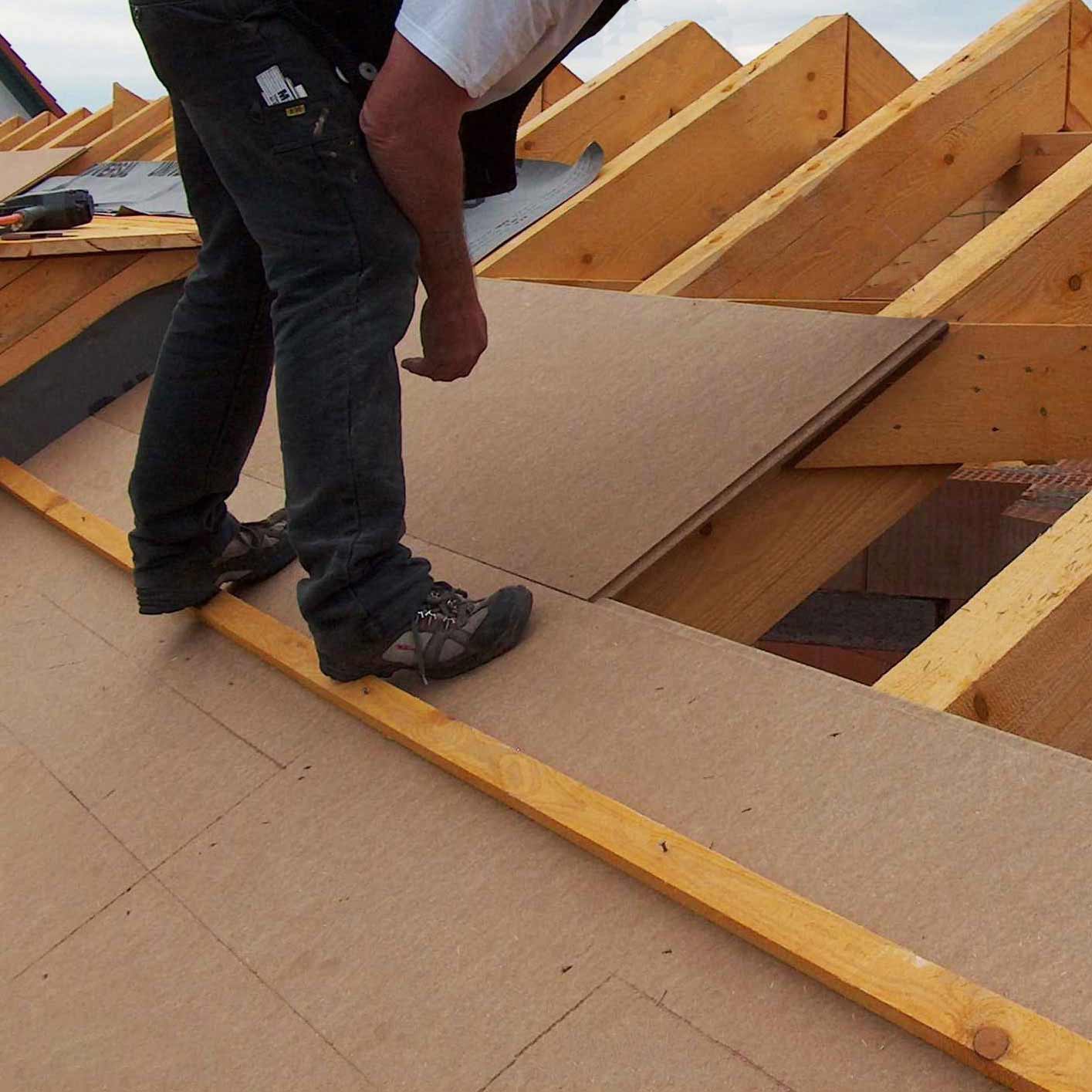

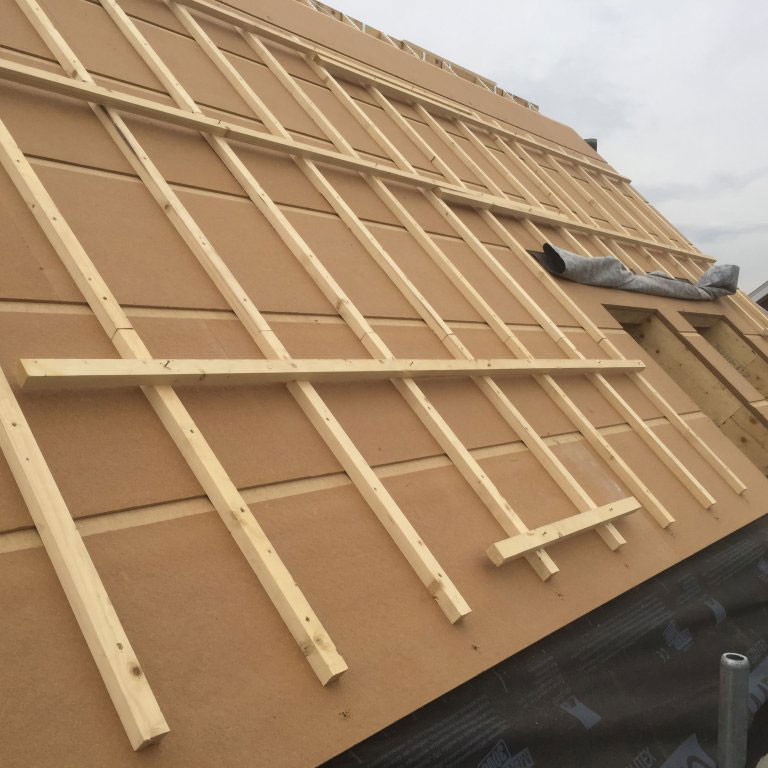

Fibertherm Universal in wood fibre board it is a high density thermal and acoustic insulation for roofs, attics and dry floors. Ideal for insulation in wooden buildings, but also in renovations and new traditional buildings.

The wood fibre board FiberTherm Universal 270 is a thermo-acoustic insulation fixed under the surface finishing layer for roofs and walls. It possesses the ability to increase the insulating power of wooden elements.

The wood fibre boards FiberTherm Universal dry are particularly stable and light, they are produced by wet process. Available with tongue and groove or sharp edge profile. These boards have an high density equal to 270 kg/m³.

The material is also recyclable, it is certified and made exclusively with wood from controlled forests in compliance with the FSC guidelines (Forest Stewardship Declaration).


With wood fibre board FiberTherm Universal 270 is possible to obtain a thermo-acoustic insulation of the roof and walls to contribute considerably to the improvement of the quality of life within their own walls of the house. With FiberTherm Universal 270 excellent thermal insulation of the solid wood structural elements is obtained. Thanks to the low thermal conductivity and the high thermal resistance, FiberTherm Universal 270 protects your environment also from summer heat and winter frost. The density, about 270 kg/m³ and the high specific heat capacity, 2100 J/kgK (more than double the mineral wool), prevent heat from entering even during the hottest days. In this way you can enjoy a pleasant sleep, even under the roof.


The wood fibre board FiberTherm Universal 270 has the following characteristics:

• high resistance to pressure, impact sound in the support area;
• excellent insulation characteristics and high protection from heat in summer;
• reduces structural thermal bridges;
• particularly open to diffusion, suitable for insulated roofs without crawl space;
• rainproof thanks to the special fold for ground slopes ≥18°;
• suitable as an emergency roof even for four weeks;
• effective protection against wind, dust, humidity and noise;
• air conditioning function thanks to the high absorption capacity;
• completely hydrophobic, no post-treatment of cutting edges;
• recyclable, ecological, environment-friendly;
• building material tested and authorized according to current European standards.

Available sizes

wood fibre boards with tongue&groove profile
Thickness Size mm Real surface mm kg/m² Pan./pallet m²/pallet kg/pallet
22 mm 2500 x 600 2480 x 585 5,83 104 150,9 approx.1020
24 mm 2500 x 600 2480 x 585 6,36 98 140,1 approx.1020
35 mm 2500 x 600 2480 x 575 9,28 66 93,9 approx.1010
52 mm 2500 x 600 2480 x 575 13,78 44 62,6 ca.1000
60 mm 2500 x 600 2480 x 575 16,20 28 54,1 approx.1000
35 mm 2800 x 1250 2775 x 1225 9,28 33 112,2 approx.1130


Available sizes

wood fibre boards with sharp edges
Thickness Size mm kg/m² Pan./pallet m²/pallet kg/pallet
35 mm 2800 x 1250 9,28 33 115,5 approx.1130


Technical characteristics

Characteristics Values
Density kg/m³ 270
Reaction to fire according to the standard EN 13501-1 E
Coefficient of thermal conductivity λD W/(m·K) 0,048
Specific heat capacity J/(kg·K) 2.100
Resistance to vapor diffusion μ 5
sd value (m) 0,11(22)/ 0,12(24) /0,18(35)
0,26(52)/ 0,30(60)
Thermal resistance RD (m²·K)/W 0,45(22)/ 0,50(24) /0,70(35)
1,05(52)/ 1,25(60)
Compression stress
at 10% distorsion (N/mm²)
0,20
Compression resistance (kPa) 200
Tensile resistance (kPa) ≥30
Short term
water absorbing (kg/m²)
≤1,0
Panels identification WF-EN13171-T5-DS(70,-)2-
CS(10/Y)200-TR30-WS1,0-AF100;
EN622-4-SB.H-E1
Waste code (EAK) 030105/170201
